MachOne生物活體組織電位測試分析系統，材料機電特性測試分析系統,軟骨等流動電位測試分析評估系統

型號:MachOne，
聯系人:李先生
聯系電話:18618101725
品牌:BMM

世聯博研公司提供2款加拿大BMM 品牌的機電特性測試分析系統：

MachOne可以在壓縮期間同時測量電勢分布，系統可以活體在體測試軟骨、骨的壓電流動電位。

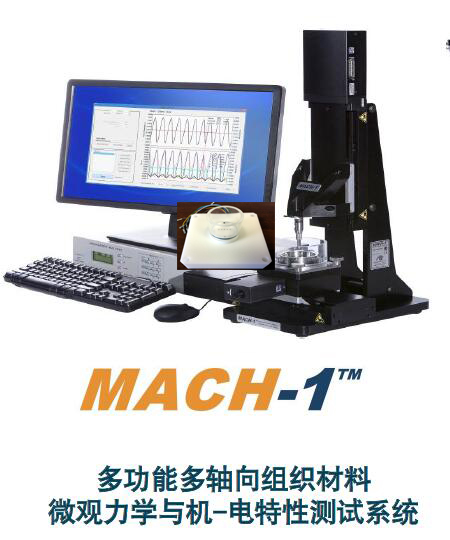

1、MachOne多功能組織材料生物力學特性、電位分布測試分析表征系統
-多載荷多物理場耦合微觀力學性能原位測試系統

該BMM 材料/組織機電耦合效應特性測試儀（機械力偶聯電位測試分析），可帶電活性組織或材料進行機械力偶聯電位測試分析,比如關節軟骨、帶電水凝膠等活組織壓縮期間同步進行電位測試,可集成3D輪廓表面形貌表征、拉伸、壓縮、三彎曲、四點彎曲、扭力、剪切、摩擦磨損、電特性等各種力電多物理場測試。能對極軟、極硬組織材料進行精密可靠的機械刺激和表征。允許表征的機械性能包括剛度、強度、模量、粘彈性、塑性、硬度、附著力、腫脹和松弛位移控制運動各種機械特性

特點

1、適用樣品范圍廣：

1.1、從骨等硬組織材料到腦組織、眼角膜等軟組織材料

1.2、從粗椎間盤的樣品到j(luò)細纖維絲

2、通高量壓痕測試分析

2.1、三維法向壓痕映射非平面樣品整個表面的力學特性

2.2、48孔板中壓痕測試分析

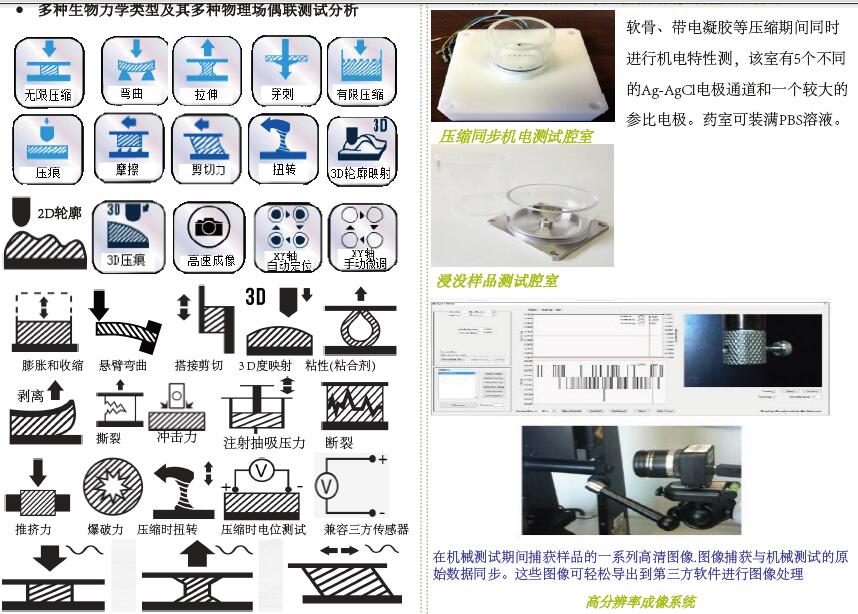

3、力學類型測試分析功能齊

模塊化集成壓縮、張力、剪切、摩擦、扭轉、穿刺、摩擦和2D/3D壓痕、3D表面輪廓、3D厚度等各種力學類型支持,微觀結構表征及動態力學分析研究

4、高分辨率:

4.1、位移分辨率達0.1um

4.2、力分辨率達0.025mN

5、行程范圍廣：50-250mm

6、體積小巧、可放入培養箱內

7 、高變分辨率成像跟蹤分析

8、多軸向、多力偶聯刺激

9、活性組織電位分布測試分析

10、產品成熟，文獻量達 上千篇

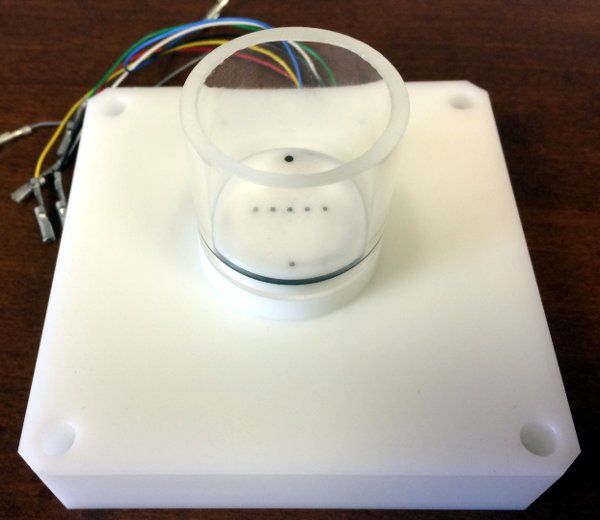

機電測試室如下：
該腔室設計用于在機電活性材料（例如結締組織，帶電水凝膠等）壓縮期間同步測量電勢分布。該腔室具有5個差分Ag-AgCl電極通道和一個較大的參比電極。圓形電極直徑為1毫米，它們之間（中心到中心）的距離為4毫米。可根據要求提供定制的幾何形狀。腔室可以充滿PBS溶液。

點與特點
該附件的設計便于清潔和消毒。
此零件設計堅固，可保持其完整性多年
設計用于與生理鹽水溶液接觸
易于組裝和安裝在測試儀上
由透明材料制成，方便組裝

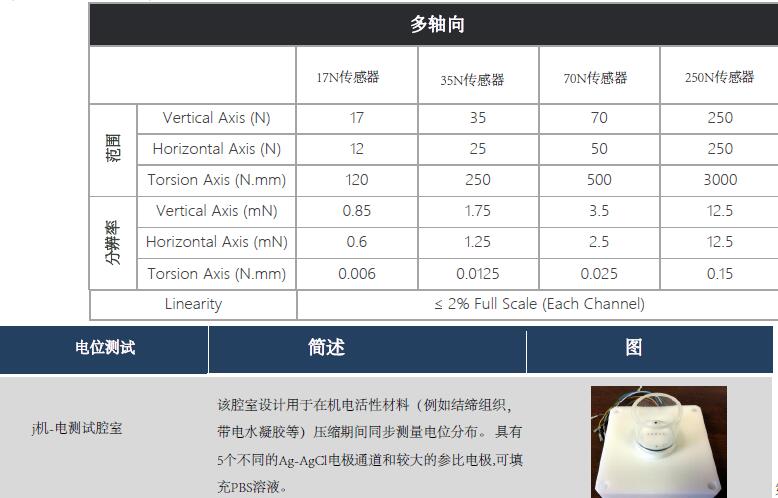

技術指標：

材質：Ag-AgCl（電極）
直徑：1 mm（電極）
間距：4 mm（中心到中心）（電極）

文獻案例：

1、結締組織的機電性能表征-

CHARACTERIZATION OF ELECTROMECHANICAL PROPERTIES OF CONNECTIVE TISSUES - PART 1 - ARTICULAR CARTILAGE
In this case study, the MachOne mechanical tester was used to determine the electromechanical properties of two connective tissues: the cartilage and the meniscus. Since tissue stiffness and compression-generated electric fields, or streaming potentials, are sensitive to the biochemical content of the tissue, the tester was coupled with an array of electrodes that can precisely measure these electric signals. The objective of this study was to establish links between biochemical composition and electromechanical properties (stiffness and streaming potentials) of normal and degenerated connective tissues. The first part of the study focuses on articular cartilage.
Since the articular cartilage extracellular matrix is primarily composed of negatively charged proteoglycans entrapped in a collagen network, there is an excess of mobile positive charges in the fluid. Compression of the cartilage produces streaming potentials via the separation of positively charged mobile ions relative to the fixed negatively charged proteoglycans.
Matched pairs of bovine cartilage/bone disks (3 mm in diameter) were cultured with and without a degradation agent (interleukin-1 or IL-1) for 11 days.
Electromechanical properties of the cartilage were evaluated by incorporating an array of electrodes into a testing chamber mounted on the MachOne. The MachOne is designed for various testing protocols including stress relaxation, sinusoidal displacement and creep in different configurations (confined and unconfined compressions, tension, indentation and bending). In this study, streaming potentials across the tissue surface are measured in unconfined compression geometry with a linear array of 8 platinum electrodes of 50 um diameter separated by 300 um. Electrodes 1 to 6 covered the 1.5 mm cartilage disk radius, and electrodes 7 and 8 were external to the cartilage in the bath. The testing chamber was filled
with physiological saline solution. A static compression offset of 100 μm was applied in a sequence of small step compressions of 20 μm at 2 μm/s. Dynamic sinusoidal tests were performed at frequencies of 1, 0.1 and 0.01 Hz with displacement amplitudes of 8, 4 and 2 μm. The streaming potential radial profile was constructed by the addition of each channel in the complex domain. Proteoglycan or glycosaminoglycan (GAG) content in the disk and content lost to the media during the culture was measured with the dimethylmethylene blue dye and spectrophotometry.
Figure 3 shows the GAG content in cartilage disks during the culture. The IL-1 treated disks lost 10, 20, 65 and 75% of their GAG content after 1, 4, 7 and 11 days of culture respectively. The MachOne is easy to use and its modular software permits a direct and rapid analysis of the dynamic sinusoidal test results. Figure 4 shows that dynamic stiffness was 3 times lower for the IL-1 treated disks compared to control after 11 days of culture.
The analysis of the stress relaxation test results showed that, at the end of the culture, the static stiffness was 4 times lower for degraded disks compared to control (0.3 MPa). Figure 5 shows the streaming potential profiles after 11 days of culture for normal and degraded cartilage. We observed that the profile potential gradient at the periphery for the IL-1 treated explants was reduced by half compared to control disks only one day after the beginning of the culture. The potential profile amplitude at the center of the disk was significantly lower for degraded disks compared to control explants after 7 days of culture.
The MachOne mechanical tester coupled with an array of electrodes can precisely determine the electromechanical properties of a large range of normal and degraded connective tissues.
2、結締組織的機電性能表征-2部分-半月板

CHARACTERIZATION OF ELECTROMECHANICAL PROPERTIES OF CONNECTIVE TISSUES - PART 2 - MENISCUS
In this case study, the MachOne mechanical tester was used to determine the electromechanical properties of two connective tissues; the cartilage and the meniscus. Since tissue stiffness and compression-generated electric fields, or streaming potentials, are sensitive to the biochemical content of the tissue, the tester was coupled with an array of electrodes that can precisely measure these electric signals. The objective of this study was to establish links between biochemical composition and electromechanical properties (stiffness and streaming potentials) of normal and degenerated connective tissues. The second part of the study focuses on meniscus.
The meniscus is a tissue similar to cartilage but softer and less charged. In this case, the samples have been sectioned to five 3-mm disks (about 1-2 mm thick) from various specified regions. Dynamic stiffness under unconfined compression and the streaming potential distribution are measured. It should be noted that the streaming potential are around 10 times lower for meniscus than cartilage (refer to Part 1 of this case study). These results also indicate that the dynamic stiffness and the streaming potential profiles are higher on the cartilaginous surface of the inner part of the meniscus (disk 1 and 2) compared to middle zones (disks 3 and 5). It is expected that these results are directly related to the proteoglycan content of menisci.
The MachOne mechanical tester coupled with an array of electrodes can precisely determine the electromechanical properties of a large range of normal and degraded connective tissues.

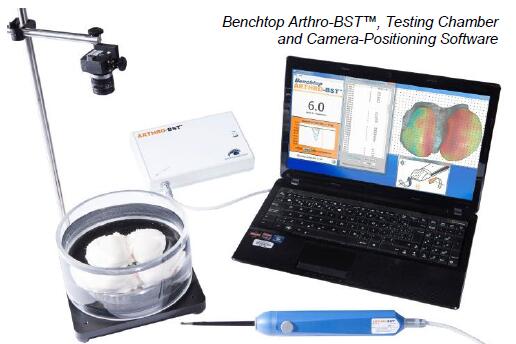

2、軟骨等流動電位測試分析評估系統

?是一種手持式醫療設備，設計用于關節鏡手術，以評估關節軟骨的功能特性。通過壓縮軟骨表面，?測量流動電位并計算反映軟骨健康狀態的定量參數。

Benchtop ?可對關節軟骨進行j確的wu損評估。它計算了一個定量參數，反映了每個測量部位的關節軟骨的生化成分和承重特性。它是為有興趣僅在離體關節軟骨上使用該工具的研究人員開發的。提供非wu菌一次性吸頭，可配備配備高分辨率相機和相機定位軟件的測試室，用于繪制大型骨軟骨樣本。

軟骨研究

Benchtop ?在軟骨修復領域提供了大量研究機會。它非常寶貴：

了解軟骨疾病，包括軟骨退化的潛在原因
開發新的治療產品和軟骨修復技術
可靠的骨關節炎動物模型的概念
創建各種物種的參考映射

工作原理：

臺式?測量關節軟骨的壓縮誘導的流動電位。在溫和壓縮軟骨表面期間使用壓頭測量這些電信號（參見下圖）。te的壓頭設計包括覆蓋有37個微電極陣列的球形表面。
該裝置計算軟骨機電活動的定量參數（QP），其對應于當其流動電位的總和達到100mV時與軟骨接觸的微電極的數量。高QP表示弱機電特性，反之亦然。 QP是可再現的，并且與施加的力和壓頭取向wu關。

健康的軟骨正常流動電位:

在正常軟骨被壓縮時，相對于包埋在膠原網絡內的帶負電荷的蛋白聚糖，間質液的流動取代帶正電的移動離子。這產生稱為流動電位的電位。

關節炎軟骨低流動電位:

退化的軟骨的特征在于蛋白多糖的喪失和膠原網絡的減弱。由于相對于帶負電的蛋白多糖，正離子的位移較小，因此關節炎軟骨的壓縮產生異常低的流動電位。

相關文獻案例：

Assessment of Human Articular Cartilage Issued from Asymptomatic & TKR DonorsHadjab I, Sim S, Quenneville E, Garon M and Buschmann MDBiomedical Engineering Society 2015 in Tampa, Floride

Introduction: Cartilage degeneration is a progressive process and currently, only end-stage surgical treatments such as total knee replacement (TKR) lead to an improved condition. To prevent or delay this surgery, several less invasive alternatives could be considered, such as pharmacological treatments, scaffolds and partial replacements1. However, current diagnostic techniques are limited...Read More

Correlation of Non-destructive Electromechanical Probe () Assessment with Histological Ss and Mechanical Properties in Human Tibial PlateauSim S, Chevrier A, Garon M, Quenneville E and Buschmann MDOrthopeadic Research Society Annual Meeting in Las Vegas, 2015, Poster 1228

The purpose of the study was to investigate if electromechanical properties of human tibial plateau correlate strongly with histological ss and with biomechanical properties as in human distal femurs (Sim et al., 2014). Six pairs of tibial plateau from human donors (5 males and 1 female, average age 48 years) were provided by RTI Surgical (FL, USA). Ex vivo electromechanical properties were mapped...Read More

Evaluation of Entire Ovine Cartilage Repair Articular Surfaces: Mechanical and Electromechanical AssessmentSim S, Hadjab I, Garon M, Quenneville E, Hurtig MB, Buschmann MD and Hoemann CDTransactions of International Cartilage Repair Society (ICRS), Chicago, 2015, 7-11 May 2015, e-Poster: P87

Purpose: To demonstrate the ability of non-destructive electromechanical device and automated indentation technique in assessing the quality of cartilage in a sheep model of cartilage repair.

Methods: Ex vivo electromechanical and mechanical mappings of articular surfaces (~40 positions/map) were performed over distal condyles from 5 treated sheep (8 – 9 y-o,...Read More

Electroarthrography, a non-invasive streaming potential-based method, measures cartilage quality in live horsesChangoor A, Brett W, Hoba MA, Garon M, Quenneville E, Gordon K, Savard P, Buschmann MD, Hurtig MB and Trout DROsteoarthritis and Cartilage, Vol. 22, Supplement 1, 138, World Congress on Osteoarthritis, April 2014, Paris, France.

Introduction: Degenerative joint diseases, including osteoarthritis, are characterized by progressive cartilage degeneration, which can lead to pain and loss of joint function. Therapeutics administered early, when only low grade cartilage changes have occurred, may slow or reverse disease progression, however, current clinical assessment methodologies lack the sensitivity required to provide...Read More

Non-invasive Electroarthrography Correlates to Direct Measurements of Cartilage Streaming Potentials in Weight Bearing Regions of Equine Metacarpophalangeal (Fetlock) JointsChangoor A, Hoba MA, Garon M, Quenneville E, Gordon K, Savard P, Buschmann MD and Hurtig MBTransactions of the 60th Annual Meeting of the Orthopaedic Research Society, New Orleans, LA, USA, 1123 (2014)

Introduction/Purpose: Electroarthrography (EAG) is a new technology that non-invasively measures cartilage streaming potentials through electrodes contacting the skin surrounding an articular joint. Streaming potentials are produced during cartilage compression and directly reflect cartilage composition, structure and load bearing properties. Study objectives were to develop an approach for...Read More

Freeze-dried chitosan-PRP implants improve meniscus repair in an ovine modelGhazi Zadeh L, Chevrier A, Hurtig M, Farr J, Rodeo S, Hoemann C and Buschmann MInternational Cartilage Repair Society (ICRS), Sorrento, 2016, Poster P112

Purpose: Menisci are structurally complex and play an essential weight-??bearing role in the knee joint. Although there has been a recent increase in the number of meniscus repairs performed yearly in the US [1], only a small number of all meniscal tears are repairable so that current surgical treatment of meniscal tears often involves partial meniscectomy which increases the risk of developing...Read More

Age-dependence of the Pattern of Cartilage Electromechanical Properties in the Ovine Stifle JointSim S, Picard G, Quenneville E, Garon M and Buschmann MDTransactions of the 59th Annual Meeting of the Orthopaedic Research Society, San Antonio, TX, USA, 2013.

Introduction: The biochemical composition and mechanical/electromechanical properties of articular cartilage evolve during growth. The objective of this study was to examine the age-dependence in the distribution pattern of electromechanical properties of ovine articular cartilage. To achieve this goal, we used a hand-held medical device (), designed to be used during arthroscopy,...Read More

Streaming Potential-Based Arthroscopic Device Discerns Topographical Differences In Cartilage Covered And Uncovered By Meniscus In Ovine Stifle JointsChangoor A, Quenneville E, Garon M, Cloutier L, Hurtig MB and Buschmann MDTransactions of the 53th Annual Meeting of the Orthopaedic Research Society, San Diego, CA, USA, 32:631. (2007)

Animal models of osteoarthritis have been used for understanding diseaseprogression and are essential for assessing potential new therapies. Ovine models, such as the lateral meniscectomy model, are of interest because meniscectomy models often follow a disease progression similar to that in humans, and joint size is sufficient for multiple analyses of cartilage including biomechanical, biochemical...Read More

Electroarthrography Provides a Non-invasive Streaming Potential-Based Method for Detecting Cartilage Degeneration in an Equine Model TransactionsChangoor A, Hoba MA, Quenneville E, Garon M, Gordon K, Buschmann MD, Savard P and Hurtig MBThe 59th Annual Meeting of the Orthopaedic Research Society, San Antonio, TX, USA, 1974. (2013)

Degenerative joint diseases, like osteoarthritis, are characterized by progressive cartilage degeneration, which can lead to pain and loss of mobility. Low-grade cartilage deterioration occurs early in disease progression and may be treatable. However, current clinical assessment methodologies, including physical exam, synovial fluid analysis and imaging, may not be sensitive enough to detect early...Read More

Streaming Potential-Based Arthroscopic Device Can Detect Changes Immediately Following Localized Impact in an Equine Impact Model of OsteoarthritisChangoor A, Quenneville E, Garon M, Hurtig MB and Buschmann MDOsteoarthritis and Cartilage, Vol. 17, Supplement 1, S53, World Congress on Osteoarthritis, September 2009, Montreal, Quebec, Canada. (2009)

Early Post-traumatic Osteoarthritis (PTOA) can be asymptomatic but represents a possible window of opportunity for therapeutic intervention before disease progression. Impact models are ideal for studying these strategies because the location and severity of impact can be controlled. Streaming potentials generated during cartilage compression are a sensitive measure of degeneration, which may be valuable...Read More

Assessment of allograft performance in vivo using electromechanical properties of articular cartilageUsas A, Mickevicius T, Pockevicius A, Kucinskas A, Maciulaitis J and Gudas RInternational Cartilage Repair Society (ICRS), Sorrento, 2016, Poster P211

Purpose: Clinical outcome of osteochondral allograft transplantation (OAT) depends on allograft quality. There is a lack of rapid and reliable non-destructive methods for intraoperative evaluation of repaired cartilage. Measurement of cartilage electromechanical properties offers novel possibilities to monitor cartilage healing after OAT. The purpose of our study was to evaluate in vivo performance...Read More

Comparison Between In Vitro and Simulated Arthroscopy Electromechanical Measurements of Human Articular Surfaces Using the Sim S, Becher C, Garon M, Quenneville E, Hurschler C and Buschmann MDInternational Cartilage Repair Society 2016 in Sorrento, Italy. Poster 132

Purpose: The output of the was originally streaming potentials integral (SPI) parameter (Abedian-2013). Since then, the output has changed to a quantitative parameter (QP) (Sim-2014). The purpose of this study was to reanalyzed old data to investigate whether QP values are reliable for assessing articular cartilage in a clinical context.

Materials & Methods:...Read More

Impact of storage conditions on electromechanical, histological and histochemical properties of osteochondral allograftsMickevicius T, Pockevicius A, Kucinskas A, Gudas R, Maciulaitis J, Noreikaite A and Usas ABMC Musculoletal Disorders, 16(1), 314. (2015)

Background: Osteochondral allograft transplantation has a good clinical outcome, however, there is still debate on optimization of allograft storage protocol. Storage temperature and nutrient medium composition are the most critical factors for sustained biological activity of grafts before implantation. In this study, we performed a time-dependent in vitro experiment to investigate the effect...Read More

Electromechanical Assessment of Human Knee Articular Cartilage with Compression-Induced Streaming PotentialsBecher C, Ricklefs M, Willbold E, Hurschler C, and Abedian RCartilage, 7(1) 62-69. (2016)

To assess the electromechanical properties of human knee articular cartilage with compression-induced streaming potentials for reliability among users and correlation with macroscopic and histological evaluation tools and sulfated glycosaminoglycan (sGAG) content.Streaming potentials are induced in cartilage in response to loading when mobile positive ions in the interstitial fluid temporarily move...Read More

Decrease of the electrical potentials measured on the surface of the knee and produced by cartilage compression during successive loading cyclesZhu L, Garon M, Quenneville E, Buschmann MD and Savard PJournal of Biomechanics, 49(14), 3587-3591. (2016)

Electroarthrography (EAG) is a new technique formeasuring electrical potentials appearing on the knee surface during loadingthat reflects cartilage quality and joint contact force. Our objective was toinvestigate the evolution of EAG signals during successive loading cycles. Thestudy was conducted on 20 standing subjects who shifted their body weight toachieve knee loading. Their EAG signals were recorded...Read More

Mechanical loading of knee articular cartilage induced by muscle contraction can be assessed by measuring electrical potentials at the surface of the kneeZhu L, Buschmann MD and Savard PJournal of biomechanics, 49(3), 338-343. (2016)

Electroarthrography (EAG) consists of recording electrical potentials on the knee surface that originate from streaming potentials within articular cartilage while the joint is undergoing compressive loading. The aim was to investigate how the contraction of specific leg muscles affects the contact force of the knee joint and, in turn, the EAG values.
For six normal subjects, voluntary isometric...Read More

Characterization of tissue engineered cartilage products - Recent developments in advanced therapyMaciulaitis J, Rekstyte S, Usas A, Jankauskaite V, Gudas R, Malinauskas M and Maciulaitis RPharmacological Research 113 (2016) 823–832

Legislative requirements for the quality of pharmacological agents underwent certain evolution when new type of therapies emerged. This relates to cell based medicines, such as tissue engineered cartilage products (TECP) which are increasingly developed as new modalities for widely prevalent orthopaedic disorders. Although quality measures for TECP are subject to the same general regulatory quality...Read More

Combined Mechanical Characterizations Increases Sensitivity in the Assessment of Human Cartilage DegenerationSim S, Hadjab I, Chevrolat L-A, Masse M, Tong AL, Lavigne P, Garon M, Quenneville E and Buschmann MDAccepted for a podium presentation at ORS 2017

Introduction: We published a recent study showing superior sensitivity of electromechanical and indentation (instantaneous response) assessments versus well-established techniques, including histological Mankin s, to characterize cartilage degeneration. This study aims to determine whether the combination of instantaneous, relaxation and equilibrium mechanical properties and friction...Read More

Non-destructive electromechanical assessment () of human articular cartilage correlates with histological ss and biomechanical propertiesSim S, Chevrier A, Garon M, Quenneville E, Yaroshinsky A, Hoemann CD and Buschmann MDOsteoarthritis Cartilage, 22(11) 1926-35. (2014)

OBJECTIVE:The hand-held ? device is used to map electromechanical properties of articular cartilage. The purpose of the study was to evaluate correlation of electromechanical properties with histological, biochemical and biomechanical...Read More

Electromechanical probe and automated indentation maps are sensitive techniques in assessing early degenerated human articular cartilageSim S, Chevrier A, Garon M, Quenneville E, Lavigne P, Yaroshinsky A, Hoemann CD and Buschmann MDJ Orthop Res, 35(4) 858-867. (2017) Epub 2016 Jun 22

Recent advances in the development of new drugs to halt or even reverse the progression of Osteoarthritis at an early-stage requires new tools to detect early degeneration of articular cartilage. We investigated the ability of an electromechanical...Read More

Development of an Electromechanical Grade to Assess Human Knee Articular Cartilage QualitySim S, Chevrier A, Garon M, Quenneville E, Lavigne P and Buschmann MDAnn Biomed Eng. doi: 10.1007/s10439-017-1879-4. (2017)

Quantitative assessments of articular cartilage function are needed to aid clinical decision making. Our objectives were to develop a new electromechanical grade to assess quantitatively cartilage quality and test its reliability. Electromechanical properties were measured using a hand-held electromechanical probe on 200 human articular surfaces from cadaveric donors and osteoarthritic...Read More

Electromechanical properties of human osteoarthritic and asymptomatic articular cartilage are sensitive and early detectors of degenerationHadjab I, Sim S, Karhula S.S, Kauppinen S. Garon M, Quenneville E, Lavigne P, Lehenkari P.P and Buschmann MDOsteoarthritis Cartilage. doi: https://doi.org/10.1016/j.joca.2017.12.002. (2017)

Objective: To evaluate cross-correlations of ex vivo electromechanical properties with cartilage and subchondral bone plate thickness, as well as their sensitivity and specificity regarding early cartilage degeneration in human tibial plateau.

Method: Six pairs of tibial plateaus were assessed ex vivo using an electromechanical probe ()...Read More

Freeze-Dried Chitosan-PRP Injectable Surgical Implants for Meniscus Repair: Pilot Feasibility Studies in Ovine ModelsGhazi Zadeh L, Chevrier A, Hurrtig MB, Farr J, Rodeo S, Hoemann CD and Buschmann MDRegen Med Ther, 1(1) 16-29. (2017)

Clinical management of meniscus tears often involves partial meniscectomy, which can lead to Osteoarthritis (OA). Meniscus repair augmentation strategies are being developed to compensate for the tissue’s limited healing response. The purpose of the study was to assess the feasibility of using implants composed of freeze-dried Chitosan (CS) solubilized in Platelet-Rich Plasma (PRP) to improve...Read More

Osteochondral Repair and Electromechanical Evaluation of Custom 3D Scaffold Microstructured by Direct Laser Writing LithographyJ. Maciulaitis, M. Miskiniene, S. Rekstyte, M.Bratchikov, A. Darinskas, A.Simbelyte, G. Daunoras, A. Laurinaviciene, A. Laurinavicius, R. Gudas, M. Malinauskas and R. MaciulaitisCartilage · May 2019, https://doi.org/10.1177/1947603519847745

Objective
