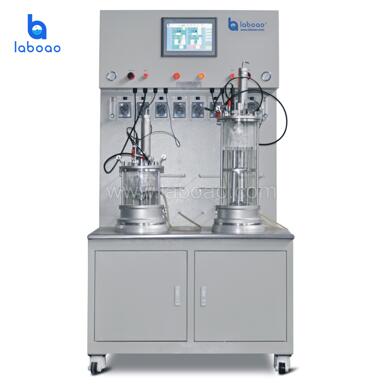

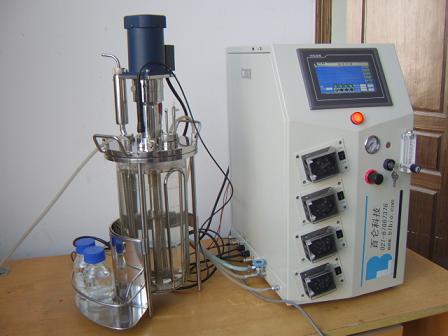

5 liters Magnetic stirring glass fermentor BLBIO-XGC
Models BLBIO-1GC BLBIO-3GC BLBIO-5GC BLBIO-7GC BLBIO-10GC
Total Volume 1 Liter 3 Liter 5Liter 7Liter 10 Liter
Load Proportion 65-80% of total volume, 70% optimum
Vessel Material glass body and stainless steel lid and bottom
The high ratio: 2:1
Mixing method: magnetic stirred from bottom, without mechanical seal
Sterilization method: off-site sterilization Autoclavable
Control system: Siemens PLC, industrial LCD touch computer control, parameters can be set to store, can be remotely connected to the computer through the USB interface, the data
Stirring system
high-powered stirring oar, antifoam oar; AC electrical machine: infinite speed variation; rpm in the fermenter: 70~1２00rpm±1%,The height of the stirring oar can be adjusted, too.
Temperature detection and control
Heat by thermostatic water tank and circulate by circulating pump(Grundfos, Denmark), autocontrol (cooling water+5℃)~65℃±0.1℃，temperature probe(US)
pH detection and control
2.00-12.00±0.05pH, autocontrol by adding acid and base, pH sensor (Mettler, Switzerland) and shielding lead (Mettler, Switzerland). fermenter is autocontrolled with peristaltic pump
DO detection and control
0-150±3% displaying precision 0.1%, sensor (Mettler, Switzerland) and shielding lead(Mettler, Switzerland)
Feed control
fermenter uses peristaltic pump (Longer) to add meterials
Antifoam control
Tested by sencor and added antifoamer by peristaltic pump
Intake control (air) :manual control rotameter
pressure detection and control
Pressure Control: Pressure meter and digital display and digital remote control, pressure control
We provide the fermentor products including : mechanical agitation fermentor、Laboratory steel fermentor, Laboratory half-glass fermentor Laboratory glass fermentor, Magnetic agitation fermentor, Positive join stainless steel fermentor. Multifunctional fermentor、solid fermentor、air lift fermentor 、miniature fermenter、light bioreactor、 If you need some details pls contact us。We are professional Fermentor, Fermentors manufacturer and factory in China.
