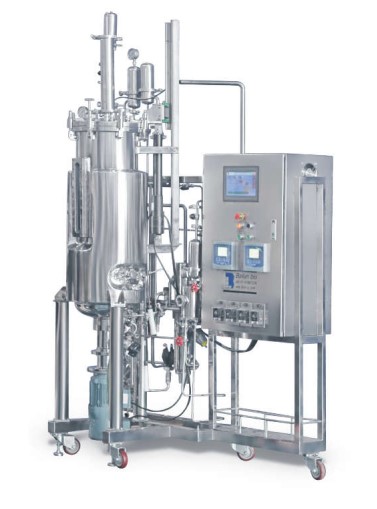

Fermenters Bioreactors:
Fermentors
Bioreactors
- Product Detail
Material: 316L stainless steel inside and 304 jacket
The diameter and height ratio: 1:2-3
Mixing method: magnetic stirring or mechanical stirring one of the two optional
Sterilization method: on-site sterilization auto control or manual control
Control system: Siemens PLC, industrial LCD touch computer control, parameters can be set to store,can be remotely connected to the computer through the USB interface, the data
Stirring system
Mechanical sealing system : high-powered stirring oar, anti-foam oar; AC electrical machine:infinite speed variation; rpm in the fermenter: 50~1000 rpm±1%,The height of the stirring oar can be adjusted
Temperature detection and control
Heat by thermostatic water tank and circulate by circulating pump(Grundfos, Denmark), auto control (cooling water+5℃) to 65℃±0.1℃,temperature probe(PT100)
pH detection and control
2.00-12.00±0.05 pH, autocontrol by adding acid and base, pH sensor (Mettler/Hamilton, Switzerland) and shielding lead (Mettler/Hamilton, Switzerland). fermenter is auto controlled with peristaltic pump
DO detection and control
0-150±3% displaying precision 0.1%, sensor (Mettler/Hamilton, Switzerland) and shielding lead(Mettler/Hamilton, Switzerland)
Feed control
Uses peristaltic pump (Spriax, UK) to add materials
Anti-foam control
Tested by sensor and added anti foamer by peristaltic pump
Intake control (air) manual control rota meter
Lid lift: Have lid lift system
Harvest valve: Zero dead leg flush bottom valves,can be sterilized separately, manual
Sampling valve: At the low side of vessel,can be sterilized separately
Exhaust: Condenser before the exhaust, exhaust controlled by diagram valve
Pressure detection and control
Auto control, pressure transmitter from BD,Germany, and displayed by pressure gauge
Pipeline and valve
The pipelines and valves which are in contact with the fluid are made by 316L stainless steel, the valves are diaphragm cell valves
Our in China.
We provide the fermentor products including : Stainless steel fermenter, Pilot combo stainless steel fermentor,glass fermentor,fermenter, Multi-Union fermenter,Multi-stagefermentation tank,and shaking Incubators, positive join stainless steel fermentor.
The diameter and height ratio: 1:2-3
Mixing method: magnetic stirring or mechanical stirring one of the two optional
Sterilization method: on-site sterilization auto control or manual control
Control system: Siemens PLC, industrial LCD touch computer control, parameters can be set to store,can be remotely connected to the computer through the USB interface, the data
Stirring system
Mechanical sealing system : high-powered stirring oar, anti-foam oar; AC electrical machine:infinite speed variation; rpm in the fermenter: 50~1000 rpm±1%,The height of the stirring oar can be adjusted
Temperature detection and control
Heat by thermostatic water tank and circulate by circulating pump(Grundfos, Denmark), auto control (cooling water+5℃) to 65℃±0.1℃,temperature probe(PT100)
pH detection and control
2.00-12.00±0.05 pH, autocontrol by adding acid and base, pH sensor (Mettler/Hamilton, Switzerland) and shielding lead (Mettler/Hamilton, Switzerland). fermenter is auto controlled with peristaltic pump
DO detection and control
0-150±3% displaying precision 0.1%, sensor (Mettler/Hamilton, Switzerland) and shielding lead(Mettler/Hamilton, Switzerland)
Feed control
Uses peristaltic pump (Spriax, UK) to add materials
Anti-foam control
Tested by sensor and added anti foamer by peristaltic pump
Intake control (air) manual control rota meter
Lid lift: Have lid lift system
Harvest valve: Zero dead leg flush bottom valves,can be sterilized separately, manual
Sampling valve: At the low side of vessel,can be sterilized separately
Exhaust: Condenser before the exhaust, exhaust controlled by diagram valve
Pressure detection and control
Auto control, pressure transmitter from BD,Germany, and displayed by pressure gauge
Pipeline and valve
The pipelines and valves which are in contact with the fluid are made by 316L stainless steel, the valves are diaphragm cell valves
Our in China.
We provide the fermentor products including : Stainless steel fermenter, Pilot combo stainless steel fermentor,glass fermentor,fermenter, Multi-Union fermenter,Multi-stagefermentation tank,and shaking Incubators, positive join stainless steel fermentor.
Our advantages:
1. Good price good quality with beautiful shape.
2. Stable availability, complete specification.
3. MOQ 1unit.
4. The strong support of advanced technology and detection capability.
5. ISO /CEcertification.
6. Reliable , established since 1998.
7. Professional service and technology support.
2. Stable availability, complete specification.
3. MOQ 1unit.
4. The strong support of advanced technology and detection capability.
5. ISO /CEcertification.
6. Reliable , established since 1998.
7. Professional service and technology support.
FAQ
Q: What's your MOQ?
A: 1 unit.
Q: Do you accept OEM ?
A: Yes.
Q: Are you manufacture of fermenter/bioreactor?
A: Yes.
Q: Do you provide after sales service, training and installation?
A: Yes.
Q: Have warranty or not?
A: Yes, have 1 year international warranty.
Warmly welcome to inquire servicefermentertech.com
Or Call tel +86-134 7276 8136(whatsapp).
Or Call tel +86-134 7276 8136(whatsapp).
-
We are a leading Fermenter/Bioreactor manufacturer and supplier from China since 1998.
We accept customize up to your special requirements,
One of our located in Shanghai, warmly welcome you visit our .
Our product: Glass Fermenter, Stainless Steel Fermenter
Capacity: Mini 0.1L to pilot 500L to industrial 500tons
Application: Vaccine Production, Microorganism Culture (Bacterial, Fungi, Yeast.etc)
Mammalian Cell, Plant Cell, Algae, Enzyme, Protein, Additive Production, etc.
