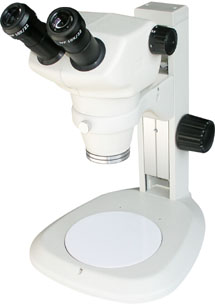

SZ2-40 Zoom Stereo Microscope includes:
SZ401101 Stereo Zoom Binocular Body
SZ402101 10X Adjustable Eyepieces (Pair)
MA202201 76mm Track Stand
SZ403201 49.5mm Ring Adapter
Specifications
Zoom Range of Zoom Body: 0.8X-5X
Zoom Ratio: 1: 6.3
Magnification: 4X-200X
Field of View: 1.3mm-55mm
Working Distance: 43.5mm-211mm
Working Distance of Built-in 1X Lens: 115mm
Adjustable Interpupillary Distance: 52mm-75mm
Eyetube Inclination: 45°
Eyepiece Diopter Correction: -8-+5 Diopter 360° rotatable microscope head
Optional Eyepieces: 10X, 15X and 20X
Optional Auxiliary Lenses: 0.5X and 2X
Optional Video Couplers: 0.4X (For Trinocular Body)
Auxiliary
Lens |
Working
Distance
(mm) |
Eyepieces |
| 10X(Φ22mm) |
15X(Φ16mm) |
20X(Φ12.5mm) |
|
Mag.
|
FOV (mm)
|
Mag.
|
FOV (mm)
|
Mag.
|
FOV (mm)
|
| 0.5X |
220 |
4X-25X |
55-8.8 |
6X-37.5X |
40-6.4 |
8X-50X |
31.2-5 |
| Built-in(1X) |
115 |
8X-50X |
27.5-4.4 |
12X-75X |
20-3.2 |
16X-100X |
15.6-2.5 |
|
2X
|
45
|
16X-100X
|
13.8-2.2
|
24X-150X
|
10-1.6
|
32X-200X
|
7.8-1.3
|
