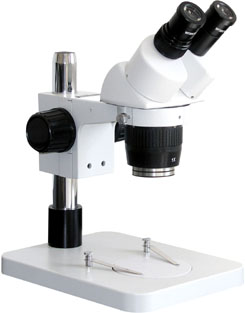

FS-10 Dual Power Stereo Microscope includes:
FS101101 1X/3X Binocular Body
SZ502101 10X Eyepieces (Pair)
MA203101 76mm Post Stand
Specifications
Dual Power Zoom Body: 1X/3X or 2X/4X
Optical Magnification: 10X-90X (1X/3X zoom body with different optional eyepieces and auxiliary objectives); 20X-120X (2X/4X zoom body with different optional eyepieces and auxiliary objectives)Field of View: 3mm-20mm (1X/3X zoom body with different optional eyepieces);2.25mm-10mm(2X/4X zoom body with different optional eyepieces)
Working Distance of Built-in 1X Objective Lens: 100mm
Interpupillary Adjustment: 54mm-75mm
Eyetube Inclination: 45°
Eyepiece Diopter Correction: ±5 Diopter for the left tube
Optional Eyepieces: 10X, 15X, 20X, 25X and 30X
Dual Power
Zoom Body |
Working
Distance
(mm) |
Eyepieces |
| 10X(Φ22mm) |
15X(Φ16mm) |
20X(Φ12mm) |
25X(Φ11.5mm) |
30X(Φ9mm) |
|
Mag.
|
FOV (mm)
|
Mag.
|
FOV (mm)
|
Mag.
|
FOV (mm)
|
Mag. |
FOV (mm) |
Mag. |
FOV (mm) |
| 1X/3X |
100 |
10X/30X |
20/6.7 |
15X/45X |
16/5.3 |
20X/60X |
12/4 |
25X/75X |
11.5/3.8 |
30X/90X |
9/3 |
| 2X/4X |
20X/40X |
10/5 |
30X/60X |
8/4 |
40X/80X |
6/3 |
50X/100X |
5.75/2.875 |
60X/120X |
4.5/2.25 |
