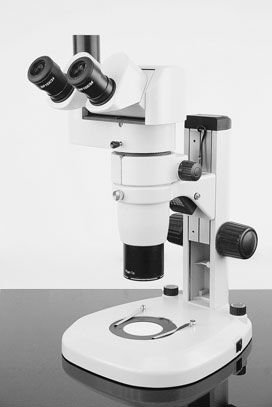

PZ4 Parallel Zoom Stereo Microscope includes:
PZ402102 0-35 Adjustable Parallel Binocular
PZ405101 True-Trinocular Image Port
PZ401103 1:10 Parallel Zoom Body
PZ403101 10X Adjustable Eyepieces (Pair)
PZ404101 1X Objective Lens
PZ406200 Coupler Adapter
MA204111 LED Dual Illuminated Light Track Stand
Specifications
Zoom Range of Zoom Body: 0.8X-5X; 0.8X-6.5X; 0.8X-8X
Max. Optic Magnification: 2.4X-200X/ (1:6.3 Parallel Zoom Body); 2.4X-260X/ (1:8 Parallel Zoom Body); 2.4X-320X/ (1:10 Parallel Zoom Body)
Eyetube Inclination: 0°-35°
Interpupillary Adjustment: 55mm-75mm
Optional Adjustable Eyepieces: 10X, 15X and 20X
Zoom Ratio: 1:6.3; 1:8; 1:10
Field of View: 1.2mm-100mm/ (1:6.3 Parallel Zoom Body); 0.9mm-100mm/ (1:8 Parallel Zoom Body);0.75mm-100mm/ (1:10 Parallel Zoom Body)
Working Distance: 32.5mm-276mm
Eyepiece Diopter Correction: ±5 Diopter
Optional Auxiliary Lenses: 0.3X, 0.5X, 1X and 2X
|
:6.3 Parallel Zoom Body
|
|
Objective Lens
|
Working Distance
(mm)
|
Eyepieces
|
|
10X(φ24mm)
|
15X(φ16mm)
|
20X(φmm)
|
|
Mag.
|
FOV(mm)
|
Mag.
|
FOV(mm)
|
Mag.
|
FOV(mm)
|
|
0.3X
|
280
|
2.4X-15X
|
100-16
|
3.6X-22.5X
|
66.7-10.67
|
4.8X-30X
|
50-8
|
|
0.5X
|
126
|
4X-25X
|
60-9.6
|
6X-37.5X
|
40-6.4
|
8X-50X
|
30-4.8
|
|
1X
|
78
|
8X-50X
|
30-4.8
|
12X-75X
|
20-3.2
|
16X-100X
|
15-2.4
|
|
2X
|
32.5
|
16X-100X
|
15-2.4
|
24X-150X
|
10-1.6
|
32X-200X
|
7.5-1.2
|
|
1:8 Parallel Zoom Body
|
|
Objective Lens
|
Working Distance
(mm)
|
Eyepieces
|
|
10X(φ24mm)
|
15X(φ16mm)
|
20X(φmm)
|
|
Mag.
|
FOV(mm)
|
Mag.
|
FOV(mm)
|
Mag.
|
FOV(mm)
|
|
0.3X
|
280
|
2.4X-15.9X
|
100-12.3
|
3.6X-29.3X
|
66.7-8.2
|
4.8X-39X
|
50-6.15
|
|
0.5X
|
126
|
4X-32.5X
|
60-7.4
|
8X-52X
|
40-4.9
|
8X-65X
|
30-3.7
|
|
1X
|
78
|
8X-65X
|
30-3.7
|
12X-97.5X
|
20-2.5
|
16X-130X
|
15-1.85
|
|
2X
|
32.5
|
16X-130X
|
15-1.85
|
24X-195X
|
10-1.23
|
32X-260X
|
7.5-0.9
|
|
1:10 Parallel Zoom Body
|
|
Objective Lens
|
Working Distance
(mm)
|
Eyepieces
|
|
10X(φ24mm)
|
15X(φ16mm)
|
20X(φmm)
|
|
Mag.
|
FOV(mm)
|
Mag.
|
FOV(mm)
|
Mag.
|
FOV(mm)
|
|
0.3X
|
280
|
2.4X-24X
|
100-10
|
3.6X-36X
|
66.7-6.67
|
4.8X-48X
|
50-5
|
|
0.5X
|
126
|
4X-40X
|
60-6
|
6X-60X
|
40-4
|
8X-80X
|
30-3
|
|
1X
|
78
|
8X-30X
|
30-3
|
12X-120X
|
20-2
|
16X-160X
|
15-1.5
|
|
2X
|
32.5
|
16X-160X
|
15-1.5
|
24X-240X
|
10-1
|
32X-320X
|
7.5-0.75
|
